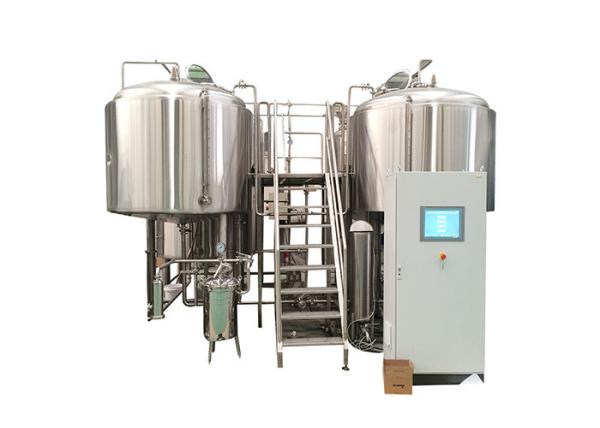

500L Stainless Steel Beer Tanks Fabricated Mirror Polished Inner Tank
The brewhouse is used to get quality wort by mashing, lautering, boiling, and whirlpooling etc. In the independent commercial or industrial beer plant, the brewhouse is usually customized to four even five vessels for getting a super output, 4-5 batches per day. Accordingly, the brewmasters would work in shifts to keep the brewhouse running at day and night. In order to save labor efficiently, the control system of brewhouse equipment usually is much more automatic, such as the pneumatic valve, PLC touch screen etc. It is in compliance with modern brewery standards and specifications. Besides, in some beer plant, the brewmasters would add secondary ingredient as the adjunct starch source, like rice, corn etc. If so, an extra cooker had better be equipped in the brewhouse.
Quick Overview
| Structure: | 500L mash tun+500L lauter tun+500L whirlpool tun+500L kettle tun+500L hot liquor tank |
| Tank Capacity: | 500L (+25% Headspace minimum) |
| Tank size: | Φ1760x3100mm |
| Material | Stainless steel, copper or brass |
| Batches/Day: | 4-5 batches per day |
| Heating Way: | Steam |
| Electric Power: | 3phase/380(220,415,440...)v/50(60)Hz |
| Note: | Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter |
Main Configuration
A. 500L mash tun with steam heating
-2mm exterior shell and 3mm interior shell
-Glass manway
-Agitator with VFD controled motor and turbine reducer
B. 500L lauter tun
-2mm exterior shell and 3mm interior shell
-Glass manway
-Grain rake with VFD controled motor and turbine reducer
-Automatic lifter of spent grain scraper blade
-Inline wort lauter sight glass
-Laser cutting V-wire False Bottom/Filter
-Bottom mounted grain outdoor
C. 500L brew kettle with steam heating
-2mm exterior shell and 3mm interior shell
-Glass manway
-Agitator with VFD controled motor and turbine reducer
-Sanitary leveling sight glass
-Steam vent with condensate ring for kettle stack
D. 500L whirlpool tun
-2mm exterior shell and 3mm interior shell
-Glass manway
-Anticlockwise Tangential whirlpool inlet in Northern Hemisphere
-Clockwise tangential whirlpool inlet in Southern Hemisphere
E. Other auxiliary equipment
-500L hot liquor tun with steam heating
-900L cooker
-flexible auger/bucket elevator
-1800L hopperand a malt hydrator
-Pneumatic valve
-Flow meter
-Hop back
-Sink and platform
-25m2 heat exchanger
-5T mash, wort and hot liquor pump
-50L Grant/buffer tank to guarantee lautering by gravity
-30L yeast feeder
-PLC control with touch screen
According to the client’s needs, various combinations of brewhouse can be offered as followings:
2 Vessel Brewhouse
- Mash/Launter Tun + Boil Kettle/Whirlpool Tun
- Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
- Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank
3 Vessel Brewhouse
- Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
- Mash (kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun
4 Vessel Brewhouses
- Mash (kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool Tun
Contact us immediately to get latest specification and price of 500L 4 Vessel Brewhouse SS304 Fabricated Mirror Polished Inner Tank
